Introduction

Limits of traditional programming

Traditional programming approaches fail at tasks that humans find effortless.

For instance:

Recognizing handwritten digits: Each “3” looks different, yet we instantly recognize the pattern
Understanding context: “The bank” could refer to a financial institution or a river’s edge
Learning from examples: We don’t need explicit rules to recognize new instances

The intelligence paradox

Traditional programming relies on explicit rules and algorithms. For image recognition, you’d need to write code that handles every possible variation of how a digit could be drawn - different angles, sizes, writing styles, and lighting conditions. This quickly becomes intractable.

Human brains, however, excel at pattern recognition through learning from examples. We see many instances of the digit “3” and somehow extract the underlying pattern without being given explicit rules about what makes a “3” a “3”.

This paradox - tasks that are trivial for biological intelligence but nearly impossible for traditional programming - led to the development of neural networks and machine learning approaches that attempt to mimic how biological systems learn from data.

Recap: machine learning

Traditional programming:

$Input + Program \rightarrow Output$

Machine learning:

$Input + Output \rightarrow Program$

Differences

Instead of writing explicit rules, we provide examples (training data)
The machine learns patterns from these examples
The resulting model can then make predictions on new, unseen data

Traditional programming requires us to understand and explicitly code the relationship between inputs and outputs. For complex tasks like image recognition, this becomes impossible because we can’t enumerate all the rules.

Machine learning flips this paradigm: we provide many examples of inputs paired with their correct outputs, and let the algorithm discover the underlying patterns. This is particularly powerful for tasks where the rules are too complex to code explicitly or where we don’t fully understand the underlying mechanisms ourselves.

The key insight is that many intelligent behaviors can emerge from relatively simple learning rules applied to large amounts of data, rather than requiring explicit programming of complex behaviors. This observation connects to the foundational work on neural networks by Rumelhart et al. (1986) and the theoretical foundations of universal approximation (Cybenko, 1989; Hornik et al., 1989).

Neural networks

Introduction

Neural networks solve problems that traditional programming cannot handle:

Pattern recognition in noisy, variable data
Decision making with incomplete information
Automation of complex cognitive tasks
Scaling human-like judgment to massive datasets

The beauty of neural networks lies in their universality - the same basic architecture that recognizes handwritten digits can be adapted to recognize faces, translate languages, or play games. This is because they learn to detect increasingly complex patterns through multiple layers of simple operations.

Understanding neural networks isn’t about memorizing mathematical formulas; it’s about recognizing when and how this technology can create business value. Neural networks excel in situations where:

Rules are hard to specify: Try writing explicit rules for recognizing the digit “3” across thousands of different handwriting styles. Traditional programming would require an impossibly complex set of if-then statements.
Human expertise is expensive to scale: A human can easily recognize digits, but hiring humans to process millions of documents isn’t feasible. Neural networks can replicate human-like pattern recognition at machine speed and scale.
Data is abundant but messy: Real-world data rarely fits neat categories. Neural networks can find patterns in noisy, incomplete, or variable data that would break traditional algorithms.
Adaptability is crucial: Business environments change constantly. Neural networks can be retrained on new data, allowing systems to adapt to changing conditions without complete reprogramming.

What is a neuron?

A neuron
receives inputs → weights them → sums up → activates

This number is called the activation of the neuron
High activation (close to 1.0) = neuron is “firing” or “lit up”
Low activation (close to 0.0) = neuron is inactive
Think of it as how excited the neuron is about a particular feature

The neuron is the fundamental computational unit that makes neural networks possible. While inspired by biological neurons, artificial neurons are much simpler mathematical functions. Understanding this building block is crucial because the entire network’s behavior emerges from millions of these simple operations.

Receiving inputs: Each neuron receives numerical values from the previous layer. In the first layer, these might be pixel intensities (0 for black, 1 for white). In deeper layers, these are the outputs of neurons from the previous layer.
Weighting inputs: Each connection has a “weight” - a number that determines how much influence that input has. Positive weights amplify the signal, negative weights suppress it, and weights near zero essentially ignore that input. These weights are the “knowledge” the network learns.
Summing: The neuron calculates a weighted sum: (input₁ × weight₁) + (input₂ × weight₂) + … + bias. The bias is like a threshold - it shifts the activation point of the neuron.
Activation function: The sum gets passed through a function (like sigmoid or ReLU) that determines the neuron’s output. This introduces non-linearity, allowing the network to learn complex patterns rather than just linear relationships.

Why this design works:

Simplicity: Each neuron does something very simple, making the system robust and parallelizable
Composability: Simple operations combine to create complex behaviors
Differentiability: The mathematical smoothness allows for efficient learning algorithms
Biological inspiration: While simplified, this captures key aspects of how biological neurons process information

The magic happens when thousands of these simple units work together in layers, each learning to detect different aspects of the input pattern.

Biological inspiration

Real neurons in the brain can be in various states of activation - they can fire action potentials at different rates, or remain quiet. The artificial neuron is a dramatic simplification, reducing this complex behavior to a single number between 0 and 1.

This simplification is intentional: by abstracting away the biological complexity, we can focus on the computational principles. The key insight is that neurons can represent information through their level of activation, and that these activations can be combined and transformed through networks to process complex information.

While the biological brain is vastly more complex, this simplified model has proven remarkably effective for a wide range of tasks, suggesting that some aspects of intelligence can emerge from relatively simple computational units arranged in the right structure.

Network architecture

Figure 1: Basic neural network structure

The hierarchical organization of neural networks mirrors how human visual processing works, and this parallel isn’t coincidental; it’s one of the key insights that makes deep learning so powerful.

Connections between neurons

Each connection between neurons has a weight (positive or negative), a number that gets adusted during learning.

Positive weight: If the first neuron fires, it encourages the second neuron to fire
Negative weight: If the first neuron fires, it discourages the second neuron from firing
Bias: A constant added to shift when the neuron should activate

Weight mechanics

Positive vs. negative weights:

Positive weights act like “encouragers” - when the input neuron is active (high value), it pushes the receiving neuron toward activation
Negative weights act like “inhibitors” - when the input neuron is active, it pushes the receiving neuron toward inactivity
Zero weights mean the connection is effectively ignored

Weight magnitude:

Large positive weights create strong encouraging connections
Large negative weights create strong inhibitory connections
Small weights (near zero) have minimal influence
The network learns which connections should be strong and which should be weak

The mathematical foundation

This weighted sum with bias is the fundamental computation in neural networks. The weights determine how much influence each input has on the output, while the bias determines the baseline level of activation.

The sigmoid function $\sigma(x) = \frac{1}{1 + e^{-x}}$ serves as a “squashing” function that ensures the output stays between 0 and 1, regardless of how large or small the weighted sum becomes. This is crucial for maintaining the “activation” interpretation of neuron outputs. Other activation functions commonly used are tanh, relu, and leaky relu.

The bias is particularly important because it allows the neuron to fire even when all inputs are zero, or to require a higher threshold before firing. Without bias, neurons could only learn patterns that pass through the origin, severely limiting the network’s expressiveness.

Understanding this computation is key to grasping how neural networks work: each neuron computes a weighted combination of its inputs, adds a bias, and applies a nonlinear function to produce its output. This forms the basis of the backpropagation algorithm developed by Rumelhart et al. (1986).

This perspective - viewing neural networks as complex mathematical functions - is crucial for understanding their power and limitations. The Universal Approximation Theorem (Cybenko, 1989; Hornik et al., 1989) tells us that neural networks with sufficient hidden units can approximate any continuous function to arbitrary accuracy.

The weights and biases represent the “knobs and dials” that can be adjusted to make the network compute any function we want (within the constraints of the architecture). Training is the process of finding the right setting for these parameters.

The power of neural networks comes from this massive number of adjustable parameters, which allows them to learn complex patterns in data. However, this also presents challenges: how do we find the right values for all these parameters? This is where the learning algorithms come in.

Example: digit recognition

Example architecture for detecting digits of the MNIST dataset¹:

28×28 pixels → Neural Network → 10 probabilities

Input layer: 784 neurons (28×28 pixels)
Each neuron represents one pixel’s brightness (0.0 = black, 1.0 = white)
Hidden layers: 2 layers, 16 neurons each
These learn to detect patterns and features
Output layer: 10 neurons Each represents confidence for digits 0-9

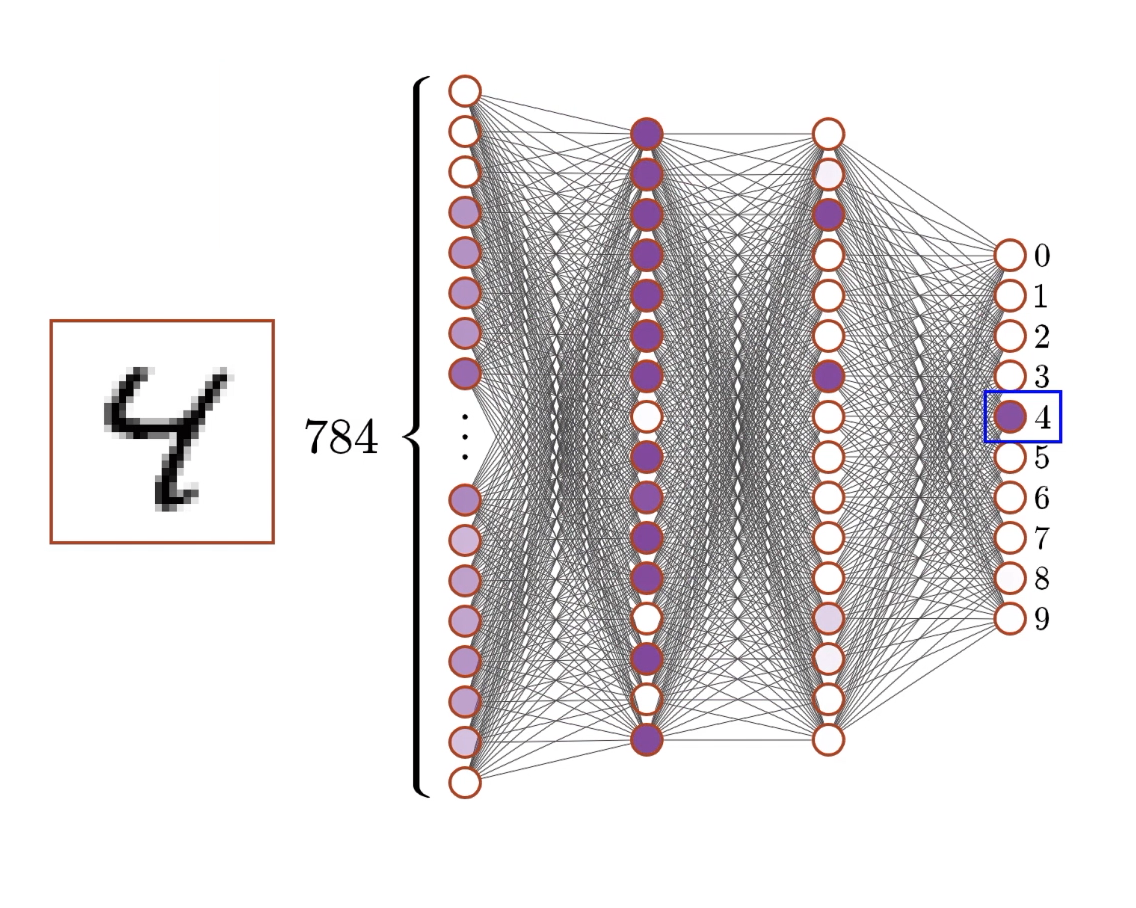

Figure 3: Network architecture for digit recognition

The architecture of our digit recognition network represents a carefully designed pipeline for transforming raw pixel data into digit classifications. Let’s understand why this specific structure makes sense:

Input layer (784 neurons):

Each neuron represents one pixel in the 28×28 image
Values range from 0 (black) to 1 (white), representing grayscale intensity
This layer doesn’t perform computation - it just holds the input data
784 inputs might seem like a lot, but images require this level of detail to preserve important patterns

Hidden layer 1 (16 neurons):

This is where the real pattern detection begins
Each of these 16 neurons receives input from all 784 pixels
With 784 inputs × 16 neurons = 12,544 weights (plus 16 biases)
These neurons learn to detect fundamental features like edges, curves, and basic shapes
16 neurons is relatively small - real networks often use hundreds or thousands

Hidden layer 2 (16 neurons):

Each neuron connects to all 16 neurons from the previous layer
16 inputs × 16 neurons = 256 weights (plus 16 biases)
These neurons combine the basic features into more complex patterns
They might detect things like “loop at top” or “vertical line on left”

Output layer (10 neurons):

One neuron for each possible digit (0, 1, 2, …, 9)
16 inputs × 10 neurons = 160 weights (plus 10 biases)
Each neuron’s activation represents the network’s confidence that the input image shows that particular digit
The highest activation typically indicates the network’s “guess”

Total Parameters:

Weights: 12,544 + 256 + 160 = 12,960
Biases: 16 + 16 + 10 = 42
Total: 13,002 adjustable parameters

This seems like a lot, but it’s actually quite modest by modern standards. Large language models can have billions of parameters. The key insight is that all these parameters work together to create a flexible function that can map any 28×28 image to a probability distribution over the 10 digit classes.

Learning

The learning problem

Goal: Find the values of all k parameters that make the network classify digits correctly.

Challenge: This is a k-dimensional optimization problem!
(In our digit example it is 13,002-dimensional)

We need a systematic way to:

Measure how “wrong” the network currently is
Determine which parameters to adjust
Make small improvements iteratively

Optimizing in 13,002 dimensions is conceptually challenging for humans to visualize, but mathematically tractable. Each dimension represents one parameter (weight or bias) in the network.

The challenge is immense: with 13,002 parameters, there are potentially infinite ways to set these values. Most combinations will perform poorly, and we need to find the tiny subset that actually works well for digit recognition.

Traditional optimization approaches (like trying random combinations or exhaustive search) would take longer than the age of the universe. We need smarter approaches that can navigate this high-dimensional space efficiently.

The key insight is that we can use calculus (specifically derivatives) to determine the direction of steepest improvement. This allows us to make educated guesses about how to adjust parameters rather than random exploration.

Cost functions

For a single training example, if the network outputs $(a_0, a_1, ..., a_9)$ but the correct answer is digit $k$:

Desired output: $(0, 0, ..., 1, ..., 0)$ (1 in position $k$, 0 elsewhere)

Cost for this example:

$C = \sum_{j=0}^{9} (a_j - y_j)^2$

where $y_j$ is the desired output for neuron $j$.

Why squared differences?

The squared error cost function has several nice properties:

Always positive: Squared terms ensure the cost is never negative
Smooth and differentiable: We can compute gradients needed for optimization
Penalizes large errors more: A network that’s very wrong gets penalized more than one that’s slightly wrong
Zero when perfect: Cost is exactly 0 when the network output matches the desired output perfectly

For digit recognition, if the correct answer is “3”, we want:

Output neuron 3 to have activation close to 1.0
All other output neurons to have activation close to 0.0

The cost function measures how far we are from this ideal. When the network is confident and correct, the cost is low. When the network is uncertain or wrong, the cost is high.

Alternative cost functions exist (like cross-entropy), but squared error is conceptually simpler and works well for educational purposes.

Gradient descent

Intuition: Imagine the cost function as a landscape with hills and valleys. We want to find the lowest valley (minimum cost).

Gradient descent algorithm:

Compute the gradient (direction of steepest increase in cost)
Move in the opposite direction (direction of steepest decrease)
Take small steps to avoid overshooting
Repeat until you reach a minimum

The geography of optimization

The landscape metaphor is powerful but limited. In 13,002 dimensions, we can’t visualize the actual landscape, but the mathematical principles remain the same.

Key insights about gradient descent:

Local vs global minima: Like a real landscape, the cost function may have multiple valleys. Gradient descent finds a local minimum (nearby valley) but might miss the global minimum (deepest valley overall).
Learning rate: This is a crucial hyperparameter:
- Too large: We might overshoot and oscillate around the minimum
- Too small: Progress is very slow, and we might get stuck
- Just right: Steady progress toward a minimum
High-dimensional intuition: In high dimensions, most points are neither maxima nor minima, but saddle points. This actually helps optimization because there are usually many directions that lead downhill.
Why it works: Even though we can’t visualize 13,002-dimensional space, the mathematical guarantee is that moving in the negative gradient direction will decrease the cost (at least for small steps).

Backpropagation

Challenge: How do we compute the gradient of the cost function with respect to all k parameters efficiently?

Backpropagation algorithm:

Forward pass: Run the network on a training example to get predictions
Compute cost: Compare predictions to correct answers
Backward pass: Use the chain rule² to compute how each parameter affects the cost
Update parameters: Adjust each parameter in the direction that reduces cost

This elegant algorithm, formalized by Rumelhart et al. (1986), makes training deep networks computationally feasible (Sanderson, 2017b).

The mathematical elegance of backpropagation

Backpropagation is essentially an efficient application of the chain rule from calculus. The key insight is that we can compute gradients by working backwards through the network.

Forward Pass Example: Input → Layer 1 → Layer 2 → Output → Cost

Backward Pass: Cost → ∂Cost/∂Output → ∂Cost/∂Layer2 → ∂Cost/∂Layer1 → ∂Cost/∂Weights

For each parameter, we ask: “If I change this parameter by a tiny amount, how much does the cost change?” The chain rule lets us compute this efficiently by decomposing the influence into steps.

Think of it as tracing cause and effect:

How did weight W affect neuron N?
How did neuron N affect the layer’s output?
How did the layer’s output affect the final prediction?
How did the final prediction contribute to the error?

Why “Backpropagation”?: We propagate the error backwards through the network. Starting from the final cost, we compute how much each layer contributed to that cost, then how much each neuron contributed, and finally how much each weight contributed.

This algorithm is remarkably efficient: computing the gradient for all parameters takes roughly the same computational time as computing the network’s output itself. This efficiency made training deep networks practical (Sanderson, 2017b).

Learning loop

Start with random weights
Make a prediction (forward pass)
Measure the error
Trace back to find responsible weights (backpropagation)
Adjust weights to reduce error
Repeat with the next example

Through millions cycles, the network gradually learns to recognize even complex patterns.

The remarkable thing is that complex behaviors (like recognizing handwriting) emerge from this simple process of error correction.

This transformation from random guesses to intelligent recognition happens purely through this iterative process of prediction, error measurement, and weight adjustment. No human explicitly programs the features - the network discovers these patterns automatically through experience.

Using mini-batches for training

There are three main approaches to gradient descent:

Batch Gradient Descent: Use all training examples to compute gradient

Pros: Most accurate gradient estimate
Cons: Very slow for large datasets, memory intensive

Stochastic Gradient Descent (SGD): Use one example at a time

Pros: Fast updates, can escape local minima due to noise
Cons: Very noisy, unstable convergence

Mini-batch SGD: Use small batches (typically 16-256 examples)

Pros: Good balance of speed and stability
Cons: Requires tuning batch size

Mini-batches provide several advantages:

Computational efficiency: Modern hardware (GPUs) is optimized for parallel processing of batches
Better gradient estimates: Averaging over multiple examples reduces noise
Memory efficiency: Process data in chunks rather than loading everything
Regularization effect: The noise from mini-batching can help escape poor local minima

The choice of batch size is another hyperparameter that affects training dynamics and final performance (Sanderson, 2017a).

Mini-batch stochastic gradient descent:

Shuffle the training data randomly
Divide into small batches (e.g., 32 examples per batch)
For each batch:
- Compute gradients for all examples in the batch
- Average the gradients across the batch
- Update parameters using the averaged gradient
Repeat for many epochs³

Key insights

Neural networks excel when the data has many features and complex relationships between them (e.g., images, text, customer behavior, financial markets).
Neural networks can find patterns in this complexity that would be impossible to detect manually or with simpler algorithms.
Neural networks are remarkably robust to noisy, imperfect data (e.g., missing values, measurement errors, outliers) because they learn statistical patterns rather than requiring perfect data.
Neural networks often improve with more data, unlike many traditional methods that plateau.
Business environments change constantly. Neural networks can be retrained on new data to.

Transformers

From images to language

The challenge

Key differences between images and text:

Images has fixed size (e.g., 28×28 pixels) and spatial relationships matter
Text has variable length, sequential relationships matter, and context is crucial
Word meaning depends heavily on surrounding words
- “The bank was flooded” vs “I went to the bank”
- “model” in “machine learning model” vs “fashion model”

We need architectures designed specifically for sequential data with long-range dependencies.

Standard neural networks x language

Standard neural networks, like our digit classifier, have limitations for language:

Fixed input size: Traditional networks expect fixed-size inputs, but sentences have varying lengths
No sequential understanding: Standard networks treat input positions independently; they cannot understand that word order matters
No long-range dependencies: Information from early in a sentence might be crucial for understanding words much later

Early attempts to solve this included:

Recurrent Neural Networks (RNNs): Process sequences one word at a time, but suffer from vanishing gradients for long sequences
Convolutional Networks: Good for local patterns but struggle with long-range dependencies
LSTM/GRU: Better than RNNs but still fundamentally sequential and slow to train

The breakthrough came with Transformers (Vaswani et al., 2017), which solved these problems through a fundamentally different approach: attention mechanisms that allow every word to directly interact with every other word in the sequence.

How transformers work

Five steps transform raw text into a next-token prediction.

flowchart LR
    A("<b>Input</b><br/>'Was the bank<br/>flooded?'")
    A --> B

    subgraph B["① Tokenize"]
        B1["'Was' · 'the' · 'bank'<br/>'flooded' · '?'"]
    end

    B --> C

    subgraph C["② Embed"]
        C1["token → vector<br/>(static lookup)"]
    end

    C --> D

    subgraph D["③ Transform  ×N"]
        D1["Attention"] --> D2["Feed-Forward"]
    end

    D --> E

    subgraph E["④ Unembed"]
        E1["vector → scores<br/>over vocabulary"]
    end

    E --> F("<b>Next token</b><br/>'Yes' 0.40<br/>'No' 0.30<br/>…")

    style D fill:#dbeafe,stroke:#3b82f6

The pipeline has five stages, and the middle one repeats:

Tokenize: split text into tokens, the unit the model processes.
Embed: assign each token a vector, a starting point that is not yet context-aware.
Transform: pass all token vectors through N identical blocks; each block runs Attention then Feed-Forward.
Unembed: project the last token’s final vector onto the vocabulary to get a probability distribution.

The key architectural insight is the loop: the same block structure (Attention + FFN) repeats N times (e.g., 96 in GPT-3). Early blocks handle surface patterns; later blocks handle abstract meaning. The same input enters each block; a refined output leaves it.

Transformer architecture origins

The Transformer architecture was introduced in “Attention Is All You Need” (Vaswani et al., 2017). Its key insight: attention mechanisms alone (without recurrence or convolution) are sufficient to model long-range dependencies in sequences. This enabled full parallelisation during training and drove the scaling that produced modern LLMs.

Tokens and embeddings

Tokenization splits text into small chunks called tokens, the unit the model processes.

“Was the bank flooded?” → ["Was", "the", "bank", "flooded", "?"]

Each token becomes a high-dimensional vector, an embedding⁴:

“bank” → [0.2, 0.8, 0.1, …] (e.g., 12,288 numbers in GPT-3)
Similar tokens get similar vectors
These vectors capture semantic meaning

The embedding is static: “bank” always maps to the same vector. Attention makes it context-sensitive.

Static, not contextual (yet)

At this stage, “bank” always maps to the same vector regardless of context. The embedding is a fixed starting point (a lookup table), not a meaning. The next step, attention, transforms these static vectors into context-sensitive representations.

Students often assume embeddings already encode meaning. They encode associations learned from co-occurrence, which is a starting point for meaning, not meaning itself: “The bank was flooded” and “I went to the bank” produce identical vectors for “bank” at this stage.

Word Embeddings

Directions in embedding space can encode semantic relationships.

Examples:

Gender direction: “king” - “man” + “woman” ≈ “queen”
Plurality direction: “cat” - “cats” captures singular vs plural
Country-capital: “Germany” - “Berlin” + “France” ≈ “Paris”

The embedding layer learns to place semantically related words close together in the vector space.

The geometry of meaning

Word embeddings reveal that meaning has geometric structure. This is not just a mathematical curiosity; it reflects how language itself is structured:

Analogical reasoning: the famous “king - man + woman = queen” example shows that semantic relationships can be captured as vector operations. This suggests that certain directions in the embedding space consistently encode specific semantic properties.

Semantic clusters: words with similar meanings cluster together:

Animals: “dog”, “cat”, “horse” are close to each other
Colors: “red”, “blue”, “green” form another cluster
Countries: “France”, “Germany”, “Italy” cluster together

Hierarchical structure: the space can capture hierarchies:

“Animal” might be close to “Dog”, “Cat”, etc.
“Mammal” might be between “Animal” and “Dog”

Cultural and linguistic biases: embeddings can capture societal biases present in training data:

Occupational gender stereotypes
Racial or cultural associations
This is both a feature (capturing human-like associations) and a bug (perpetuating unfair biases)

Training process: these embeddings are not hand-crafted but learned from data. The model discovers these geometric relationships by seeing how words are used together in context (Sanderson, 2024a).

Context is everything

You now know that “bank” has an embedding vector, but which “bank” meaning should it encode? This is exactly the problem attention solves. Consider these sentences:

“The tower was very tall”
“The Eiffel tower was very tall”

The word “tower” should mean different things in different contexts:

First case: generic tower
Second case: a specific famous landmark in Paris

Attention lets context words update the meaning of other words.

Attention

Rather than having fixed embeddings for each word, attention allows the embedding to be dynamically updated based on what other words are present in the context. This creates context-sensitive representations that can capture these nuanced meanings (Sanderson, 2024b).

Single-head attention

Goal: update each token’s embedding using the context of the surrounding tokens.

Three learned weight matrices⁵:

Query $W_Q$: what am I looking for?
Key $W_K$: what do I offer?
Value $W_V$: what do I actually send?

The update runs per token, across all tokens in parallel, in three steps:

Attention scores: Query · Key (dot product) gives one score per token pair.
Softmax: the scores become weights between 0 and 1 that sum to 1.
Weighted sum: the output is the sum of all Value vectors, weighted by those scores.

Attention weights every token

The model does not select relevant tokens; it weights all of them. “flooded” might get weight 0.6 and “the” 0.02, but every token contributes. This is why attention captures gradual, distributed context rather than binary relevance.

Example

Running example: “Was the bank flooded?” Target: “bank” (financial institution vs. riverbank).

The attention process for “bank”

Step 1, scores: Q(“bank”) · K(“flooded”) high; Q(“bank”) · K(“the”) low
Step 2, weighted sum: 0.6 × V(“flooded”) + 0.3 × V(“was”) + 0.1 × V(“the”) + …
Step 3, update: the vector for “bank” now encodes the riverbank meaning

The ambiguity is resolved without any explicit rule.

Trace the disambiguation of “bank” (financial institution vs. riverbank):

Attention scores: the dot product Q(“bank”) · K(“flooded”) is high, because the model learned during training that water-related words are relevant for “bank”; Q(“bank”) · K(“the”) is low.
Weighted sum over all tokens: Output(“bank”) = 0.6 × V(“flooded”) + 0.3 × V(“was”) + 0.1 × V(“the”) + …. All tokens contribute, “flooded” most strongly.
Contextualized embedding: the updated vector for “bank” now encodes the riverbank meaning, not the financial-institution meaning.

The weighted sum is the key operation. Attention does not “select” the most relevant token; it blends all of them, with importance set by the Q · K dot product. This is why it handles gradual, distributed context rather than binary relevance.

Multi-head attention

One head learns one type of relationship; in practice many matter at once:

Head 1, grammatical: “flooded” modifies “bank”
Head 2, semantic: “flooded” signals water/geography, disambiguating “bank”
Head 3, coreference: resolves pronouns to their referents
Head 4, long-range: connects cause and effect across distance

GPT-3: 96 attention heads per layer × 96 layers = 9,216 total attention heads

The heads run in parallel on the same input, each with its own $W_Q$, $W_K$, $W_V$.

After all heads complete:

each head produces one output vector per token (e.g., 96 numbers);
the outputs are concatenated (8 heads × 96 → 768 numbers per token);
a projection matrix mixes and compresses them back to the embedding dimension;
the result is one refined vector per token, the combined perspective of all heads, which becomes the input to the Feed-Forward layer.

The concatenation and projection step is often omitted from introductory explanations, leaving students unsure how multiple head outputs become one. The projection is also where heads “talk to each other”: concatenation just stacks them, while the projection learns how to weight and combine their perspectives.

Feed-forward networks (FFN)

After attention, each token passes through a Feed-Forward Network (FFN).

Attention decides what to look at; the FFN decides what it means:

Attention: “bank” and “flooded” are strongly related
FFN: flooded riverbank, so activate geographic concepts and suppress financial ones

The FFN processes each token independently, with no exchange between tokens.

Why the FFN is necessary

Attention is a linear operation (weighted sums). A sequence of purely linear operations can always be collapsed into a single matrix multiplication; depth alone adds no expressive power. The FFN introduces nonlinearity via an activation function (ReLU or GeLU); this is what makes stacking N layers meaningful, since each layer can learn genuinely new, more abstract patterns rather than re-combining the same linear relationships.

The FFN is structurally identical to the feed-forward layers from the first part of this lecture: the same weighted sum, bias, and nonlinear activation. The only difference is what it operates on, a contextualized token embedding rather than raw pixel values. Where attention lets tokens share information, the FFN does the per-token processing; its hidden units recall patterns stored during training, much as the digit network’s hidden layers learned to detect edges and loops.

Unembedding

From vectors back to text.

The unembedding matrix $W_U$ turns the last token’s final vector into a score for every vocabulary token; softmax converts those scores into a probability distribution.

Process

Unembedding matrix $W_U$ maps from embedding dimension⁶ to vocabulary size⁷
- One row per token in the vocabulary
- Produces raw scores for possible next tokens
Softmax function converts raw scores to a probability distribution
Temperature: controls randomness in sampling⁸

Example

Context processing: “The capital of France is” → final vector
Unembedding: Vector × $W_U$ → raw scores for all 50,257 tokens
Temperature scaling: divide scores by temperature
Softmax: convert to probability distribution
Sampling: choose next token based on probabilities

$W_U$ is the mirror of the embedding matrix: embedding turns each token into a vector at the start, and $W_U$ turns the final vector back into per-token scores.

In decoder-only models (like GPT or Claude), only the last token’s vector is passed to the unembedding matrix. After all attention layers, this vector encodes not just the last token’s meaning but the entire preceding context; the last token has “seen” every previous token through attention and therefore contains the richest summary of the whole input. For “Was the bank flooded?”, the “?” token’s final vector carries the accumulated meaning of the entire question, and from it the model predicts what comes next.

Architecture variants

Not all transformers work the same way:

	Decoder-only	Encoder-Decoder	Encoder-only
Examples	GPT, Claude, Llama	T5, BART	BERT
Token sees	only previous tokens	all tokens (Encoder)	all tokens
Optimized for	text generation	translation, summarization	classification, understanding

Table 1: Transformer architecture families

Decoder-only is today’s dominant architecture for generative models: tokens attend only to previous tokens (causal attention), which enables left-to-right autoregressive generation.

Inference: parallel prompt, sequential generation

During inference, all tokens of the prompt are processed in parallel (full matrix operations across the sequence). Generation, however, is sequential: each new token requires a full forward pass before the next can begin. This is the key throughput bottleneck in deploying large language models at scale.

The causal constraint in decoder-only models is a design choice, not a limitation: it forces left-to-right generation, matching how language is naturally produced and consumed. It also ensures the final token vector always encodes the full left context, exactly what is needed for next-token prediction.

BERT (encoder-only) sees all tokens in both directions, which makes it excellent for classification and understanding tasks but unsuitable for generation. T5/BART use a separate encoder to process the full input and a decoder to generate output token-by-token, useful when input and output are structurally distinct (e.g., translation).

Training

Training process

No explicit labels needed; the text itself provides the training signal.

Next-token prediction seems simple but is remarkably powerful (Radford et al., 2019):

Implicit learnings comprise grammar, facts, reasoning, coding and patterns
More training data exposes the model to more patterns and knowledge (scale effects)
More training time allows better optimization of the massive parameter space
Training requires immense training infrastructure (GPT-3 training cost ~$4.6 million in compute)

Emergent capabilities

As models scale up, they develop capabilities that weren’t explicitly programmed:

Few-shot learning: Learn new tasks from just a few examples
Chain-of-thought reasoning: Break complex problems into steps
Code generation: Write and debug programs
Mathematical reasoning: Solve word problems and equations
Creative writing: Generate stories, poems, and scripts
Instruction following: Understand and execute complex commands

Complex intelligence seem to emerge from the simple objective of predicting the next word.

Limitations and Challenges

Despite their impressive capabilities, current language models have significant limitations:

Hallucination: Generate plausible-sounding but false information
Lack of true understanding: May memorize patterns without genuine comprehension
Inconsistency: May give different answers to the same question
Training data bias: Reflect biases present in internet text
No learning from interaction: Can’t update their knowledge from conversations
Computational requirements: Expensive to train and run

Further reads

Please check the resources provided by 3Blue1Brown on the basics of neural networks, and the math behind how they learn.

Exercises

Neural network architecture

Design a neural network for classifying emails as spam or not spam. Specify:

Input representation: How would you convert an email into numbers?
Output: How would you interpret the network’s output?
Training data: What kind of examples would you need?

Discuss the advantages and challenges of this approach compared to rule-based spam filtering.

Solution notes

Input representation options

Bag of words: Count frequency of each word in vocabulary (e.g., 10,000 input neurons)
TF-IDF: Weight word frequencies by inverse document frequency
Word embeddings: Use pre-trained embeddings and average/pool them
Character-level: Represent emails as sequences of characters

Output interpretation

Single output neuron with sigmoid activation
Value close to 1 = spam, close to 0 = not spam
Use threshold (e.g., 0.5) for binary classification

Training data requirements

Thousands of labeled emails (spam/not spam)
Balanced dataset or careful handling of class imbalance
Diverse examples covering different types of spam
Regular updates as spam techniques evolve

Advantages over rules

Automatically learns patterns from data
Adapts to new spam techniques
Can detect subtle combinations of features
Less manual maintenance required

Challenges

Requires large labeled datasets
Can be fooled by adversarial examples
Black box - hard to understand why decisions are made
May learn biases from training data

Attention mechanism

Consider the sentence: “The red car that John bought yesterday broke down on the highway.”

Identify relationships: What words should attend to each other strongly?
Multiple heads: Design 3 different attention heads that focus on different types of relationships.
Context update: How should the embedding of “car” change after processing this sentence?

Solution notes

Strong attention relationships

“red” → “car” (adjective modifies noun)
“car” → “broke” (subject-verb relationship)
“that” → “car” (relative pronoun reference)
“John” → “bought” (subject-verb)
“bought” → “car” (verb-object)
“yesterday” → “bought” (temporal modifier)
“broke” → “highway” (location context)

Three attention head types

Grammatical relationships
- Focus on syntactic dependencies
- “car” attends to “broke” (subject-verb)
- “John” attends to “bought” (subject-verb)
- Helps with grammatical consistency
Modification relationships
- Focus on descriptive relationships
- “red” attends to “car”
- “yesterday” attends to “bought”
- Captures qualitative and temporal information Coreference and long-range
- Focus on pronoun resolution and distant relationships
- “that” attends to “car”
- “broke” attends back to “car” (long-range subject)
- Handles complex sentence structure

Car embedding updates

Initial: Generic car concept
After “red”: Specific colored vehicle
After “John bought”: Particular car owned by John
After “yesterday”: Recently purchased car
After “broke”: Problematic/unreliable vehicle
Final representation: John’s recently-purchased red car with reliability issues

Transformer training

You’re training a small transformer to complete simple mathematical expressions like “2 + 3 = ?”

Tokenization: How would you represent mathematical expressions as tokens?
Training objective: What would be your training data and loss function?
Challenges: What difficulties might arise, and how would you address them?
Evaluation: How would you test if the model truly “understands” arithmetic?

Solution notes

Tokenization strategies

Character-level: [‘2’, ‘+’, ‘3’, ‘=’, ‘?’] - simple but may struggle with multi-digit numbers
Number tokens: [‘2’, ‘+’, ‘3’, ‘=’, ‘?’] - treat each number as atomic token
BPE encoding: Learn subword patterns for larger numbers
Special tokens: [NUM_2, OP_PLUS, NUM_3, OP_EQUALS, MASK]

Training data and objective

Data generation: Automatically generate arithmetic problems
- Simple: “1 + 1 = 2”, “5 - 3 = 2”
- Complex: “12 × 7 = 84”, “100 ÷ 4 = 25”
Objective: Next token prediction
- Input: “2 + 3 =”
- Target: “5”
Loss function: Cross-entropy loss on predicted vs. true next token

Challenges and solutions

Out-of-distribution numbers: Train on wide range, test generalization
Order of operations: Include parentheses: “(2 + 3) × 4 = 20”
Digit-by-digit vs. holistic:
- Problem: Might predict “1” then “2” for “12” without understanding the full number
- Solution: Use single tokens for numbers or special training techniques
Systematic vs. memorization: Risk of memorizing rather than learning arithmetic

Evaluation strategies

Held-out test set: Numbers and operations not seen in training
Systematic generalization: Can model handle larger numbers than in training?
Error analysis: Do mistakes follow patterns that suggest understanding vs. memorization?
Compositional tests: Can model handle combinations like “2 + 3 × 4”?
Ablation studies: How does performance vary with model size, training data size?

Evidence of understanding

Generalization: Correct answers on unseen number combinations
Consistency: Same answer for equivalent expressions (“2+3” vs “3+2”)
Error patterns: Mistakes that make mathematical sense (off by one) vs. random errors
Intermediate reasoning: Model generating step-by-step solutions

Ethics and AI safety

A company wants to deploy a large language model for automated customer service. Consider the following scenario:

Situation: The AI occasionally provides incorrect information about product returns, leading to customer frustration and potential financial losses.

Identify risks: What are the potential harms from this deployment?
Mitigation strategies: How could the company reduce these risks?
Monitoring: What metrics should they track to ensure safe operation?
Human oversight: When should humans intervene in the AI’s responses?

Solution notes

Potential risks and harms:

Customer harm: Incorrect return information could cost customers money
Brand damage: Poor AI interactions damage company reputation
Legal liability: Company might be liable for AI’s incorrect advice
Bias amplification: AI might treat different customer groups unfairly
Escalation: Frustrated customers might become abusive toward human agents
Over-reliance: Customers might trust AI advice over written policies

Mitigation strategies:

Knowledge grounding: Connect AI to authoritative policy databases
Confidence thresholds: Route uncertain queries to human agents
Response templates: Limit AI to pre-approved response patterns for critical information
Fact verification: Cross-check AI responses against official policies
User education: Clearly indicate when users are interacting with AI
Fallback mechanisms: Easy escalation path to human support

Monitoring metrics:

Accuracy rates: Percentage of correct responses on return policy queries
Customer satisfaction: Post-interaction surveys and ratings
Escalation rates: How often customers request human assistance
Error types: Categorize and track different kinds of mistakes
Bias metrics: Performance across different customer demographics
Business impact: Track correlation between AI interactions and returns/complaints

Human oversight triggers:

High-stakes queries: Expensive items, complex return situations
Uncertainty indicators: When AI confidence scores are low
Customer frustration: Detecting anger or confusion in customer messages
Policy exceptions: Cases requiring

Temperature and text generation

You are working with a language model that produces the following raw scores (logits) for the next token after the prompt “The weather today is”:

Raw scores: [sunny: 2.0, cloudy: 1.8, rainy: 1.2, snowy: 0.8, windy: 0.6]

Calculate probabilities: compute the probability distribution using softmax for temperatures T = 0.5, T = 1.0, and T = 2.0.

$P(token_i) = \frac{e^{score_i/T}}{\sum_j e^{score_j/T}}$

Analyze the effects:
- Which temperature setting would be best for a weather report (factual, reliable)?
- Which would be best for creative writing (varied, interesting)?
- What happens as temperature approaches 0? As it approaches infinity?
Practical implications:
- If you were building a chatbot for customer service, what temperature would you choose and why?
- How might you dynamically adjust temperature based on the type of response needed?

Solution Notes

Probabilities

$P(token_i) = \frac{e^{score_i/T}}{\sum_j e^{score_j/T}}$

T = 0.5 (low/focused)

sunny: $e^{2.0/0.5} = e^4 = 54.6$
cloudy: $e^{1.8/0.5} = e^{3.6} = 36.6$
rainy: $e^{1.2/0.5} = e^{2.4} = 11.0$
snowy: $e^{0.8/0.5} = e^{1.6} = 5.0$
windy: $e^{0.6/0.5} = e^{1.2} = 3.3$

Sum = 110.5
Probabilities: [0.49, 0.33, 0.10, 0.05, 0.03]

T = 1.0 (balanced)

sunny: $e^{2.0} = 7.4$
cloudy: $e^{1.8} = 6.0$
rainy: $e^{1.2} = 3.3$
snowy: $e^{0.8} = 2.2$
windy: $e^{0.6} = 1.8$

Sum = 20.7
Probabilities: [0.36, 0.29, 0.16, 0.11, 0.09]

T = 2.0 (high/creative)

sunny: $e^{1.0} = 2.7$
cloudy: $e^{0.9} = 2.5$
rainy: $e^{0.6} = 1.8$
snowy: $e^{0.4} = 1.5$
windy: $e^{0.3} = 1.3$

Sum = 9.8
Probabilities: [0.28, 0.25, 0.18, 0.15, 0.13]

Analysis of effects

Weather report: T = 0.5 (focused on most likely/accurate predictions)
Creative writing: T = 2.0 (more variety and unexpected choices)
As T → 0: Distribution becomes deterministic (always picks highest score)
As T → ∞: Distribution becomes uniform (all choices equally likely)

Practical implications

Customer service chatbot: T = 0.3-0.7 (reliable, helpful responses)
Dynamic adjustment:
- Factual questions: Low temperature
- Creative requests: High temperature
- Could analyze prompt content to auto-adjust

Key Insights

Temperature is a crucial hyperparameter for controlling creativity vs. reliability
Lower temperature = more predictable, higher accuracy
Higher temperature = more diverse, creative outputs
The choice depends entirely on the application and desired behavior
Dynamic adjustment based on context can optimize user experience

Literature

Cybenko, G. (1989). Approximation by superpositions of a sigmoidal function. Mathematics of Control, Signals, and Systems, 2(4), 303–314.

Hornik, K., Stinchcombe, M., & White, H. (1989). Multilayer feedforward networks are universal approximators. Neural Networks, 2(5), 359–366.

Radford, A., Wu, J., Child, R., Luan, D., Amodei, D., & Sutskever, I. (2019). Language models are unsupervised multitask learners. OpenAI Blog, 1(8), 9.

Rumelhart, D. E., Hinton, G. E., & Williams, R. J. (1986). Learning representations by back-propagating errors. Nature, 323(6088), 533–536.

Sanderson, G. (2017a). Gradient descent, how neural networks learn. 3Blue1Brown. https://www.3blue1brown.com/lessons/gradient-descent

Sanderson, G. (2017b). What is backpropagation really doing? 3Blue1Brown. https://www.3blue1brown.com/lessons/backpropagation

Sanderson, G. (2024a). But what is a GPT? Visual intro to transformers. https://www.3blue1brown.com/lessons/gpt

Sanderson, G. (2024b). Visualizing attention, a transformer’s heart. 3Blue1Brown. https://www.3blue1brown.com/lessons/attention

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A. N., Kaiser, Ł., & Polosukhin, I. (2017). Attention is all you need. Advances in Neural Information Processing Systems (NeurIPS), 30, 5998–6008. https://arxiv.org/abs/1706.03762

Footnotes

The MNIST (Modified National Institute of Standards and Technology) dataset is a popular dataset used for training and testing image classification systems, especially in the world of machine learning. It contains 60,000 training images and 10,000 test images of handwritten digits.↩︎
For a visual explanation see 3blue1brown: Visualizing the chain rule and product rule ↩︎
An epoch is one complete pass through the entire training dataset. During one epoch, the model sees every training example exactly once. Training might stop after a certain number of epochs or when performance plateaus.↩︎
Not all tokens are whole words. Tokenizers often split rare words into subword pieces: “cleverest” → [“cle”, “ve”, “rest”]. This keeps the vocabulary manageable while covering any text.↩︎
$W_Q$, $W_K$, and $W_V$ are learned during training via backpropagation; they are weights in the network just like any other layer.↩︎
An embedding dimension of 12,288 means each word/token is represented as a vector with 12,288 numbers. Each position captures some aspect of meaning, though not interpretable to humans.↩︎
A vocabulary size of 50,257 tokens means the model knows 50,257 different tokens (words, word pieces, punctuation, etc.).↩︎
High temperature gives more random/creative output; low temperature gives more focused/deterministic output.↩︎
